Fat Press Equipment
The press produced by Jiangsu Senrong is mainly used for continuous strong physical pressing of high-temperature materials after
cooking to maximize the extraction of oil from the cooked animal and poultry by-products. The press is simple in design, efficient
in operation and low in maintenance cost. The press can be continuously and efficiently mechanically pressed to cook animal or poultry by-products, and the animal fat can be continuously extracted therefrom. The residual oil rate of the pressed solid compact cake released by the press can reach 9-14%. The press separates the cooked material into a hair oil and a pressed cake by a three-stage screw press, wherein the press cake is discharged from the press port, and a hydraulic cutting head is installed at the end of the press cake outlet to maximize the final press cake. Squeezing.
The oil enters the oil sump at the bottom of the machine and discharges the oil out of the press through a spiral in the sump. Depending on the customer's capacity, we offer a wide range of different types of screw presses.
Model
Outlet pressed Cake kg/h
Fat rate in cake
Power
(KW)
Weight about
(KG)

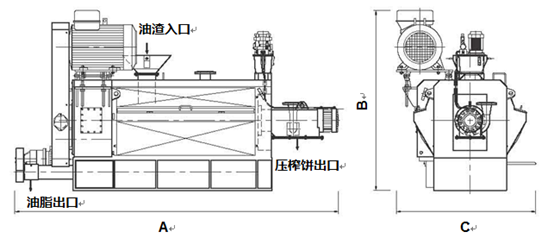

Size(mm)
A
B
C
DYZ10
560-700*
9-14*
45
3800
3170
1720
1600
DYZ25
1400-1750*
9-14*
90
6400
3990
2210
1730
DYZ45
2450-2800*
9-14*
132
9600
4270
2620
1880


Enquiry Now
Fat Press Equipment


Design characteristics

Continuous and high yield fat extraction.
Simple but effective design, reduce the maintenance cost.

Uses standard industrial gear box
T-type screw press is fitted with one fairly short shaft, and is equipped with a hydraulic choke tube in the outlet end.

To maintain certain pressure by using choke tube to regulate pressure manually or automatically in processing.

This will increase the capacity of screw conveyor, let the quality of tallow and pressed cake stable.

Using the choke tube, in processing engineering, also can adjust screw press.

We can use this technology when rendering plant make treatment of different raw material or feeding quantity to screw press
changed.
