application:

Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.

Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine too.

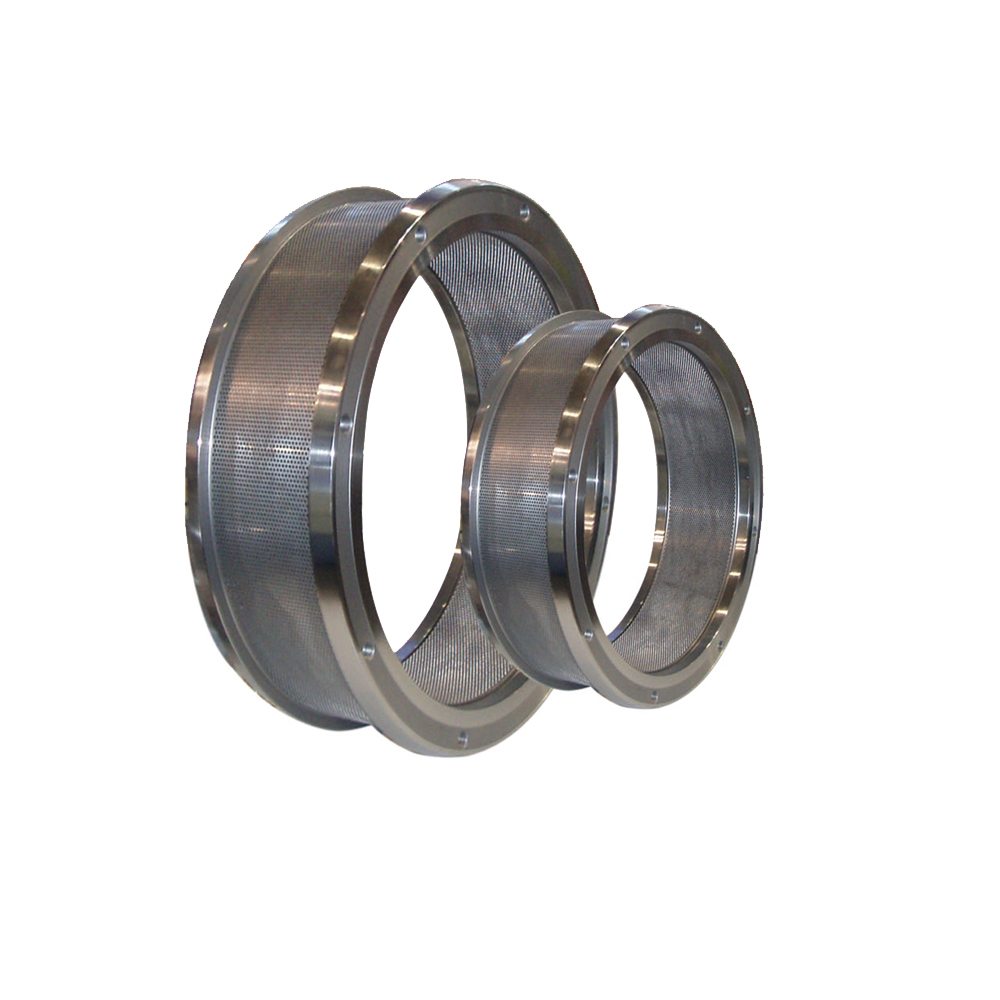

Introduction:

1. Material of the ring die:  X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized

2. Hardness of ring dies: HRC54-60.

3. Diameter of ring die can do: 1.0mm up to 28mm

4. Pellet die type can do: Ring Die or Flat Die

5. Outer diameter can do: Outer diameter up to 1800mm

6. Pellet Die model we can customize:

For Awalia pellet mill: Awalia 420, Awalia350, etc

For Buhler pellet mill: Buhler350, Buhler400, Buhler420, Buhler520, Buhler660, etc.

For CPM pellet mill: CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932, etc.

For CPP pellet mill: CPP150, CPP200,CPP360,CPP300,CSP020, etc.

For IDAH pellet mill: IDAH530, IDAH530F, IDAH635D, etc.

For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010; MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
Muyang FAMSUN350,Muyang FAMSUN420, Muyang FAMSUN550, Muyang FAMSUN600, Muyang FAMSUN1210

For Zhengchang feed pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc.

For HKJ feed pellet mill: HKJ250, HKJ320,HKJ350,HKJ400,HKJ420,HKJ508 etc.

For SZLJ feed pellet mill: SZLJ250, SZLJ320,SZLJ350,SZLJ400,SZLJ420,SZLJ508 etc.
For OGM pellet mill: OGM-0.8, OGM-1.5, OGM-6, etc.

For VAN ARSEN pellet mill: Van Arson C600, Van Arsen750, Van ArsenC900, etc.
For KAHL pellet mill (Flat die): KAHL38-780, KAHL37-850, KAHL45-1250, etc.

For PTN pellet mill: PTN580, PTN580-C, etc.

For Yemmak pellet mill: YEMMAK520, YEMMAK420, etc.

For Zhengchang wood pellet mill: MZLH250 ,MZLH320, MZLH350, MZLH400, MZLH420, MZLH508, MZLH678, MZLH768, etc.

For Yulong wood pellet mill: XGJ560, XGJ850, etc.

Process for making pellet mill ring die:

Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package.

Compression ratio of ring die:
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of our manufacturer, we provide some general data of ring die's compression ratio for your reference:
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.

The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.
