EIFTPC-60480

Single-stage incubator with large capacity

Patent of invention:200910017820.0Patent of utility model: 200920031309.1Patent of utility model: 200520087720.2For its unique water-cooling system whichcan narrow temperature gradient

Gold award for Scientific and Technicallnnovation on the tenth (2012)AnimalHusbandry Exhibition

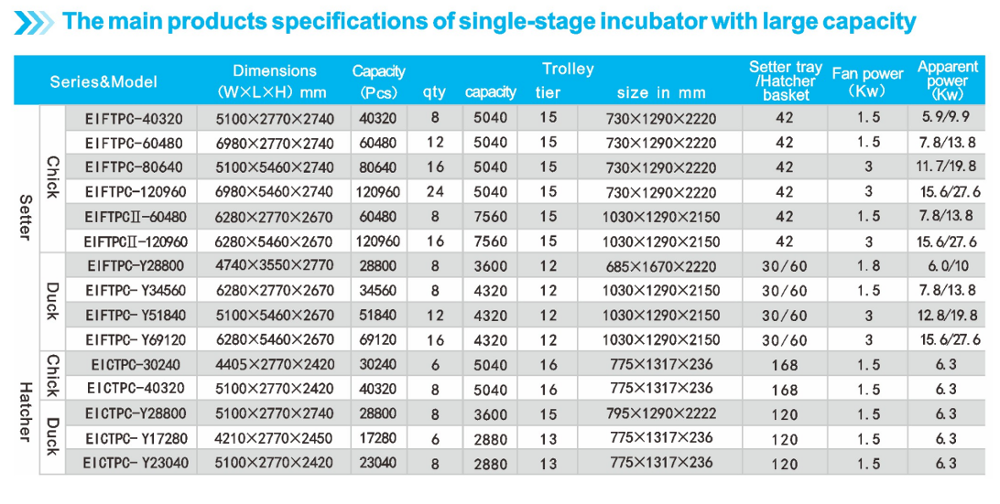

Technical specifications

Eag capacity:

For chick:40320/60480/80640/120960For duck:288D0/3456051840/G9120Temp contral range: 20℃~38.5℃

accurate temperature contral range 34℃-38.5℃Humidity control range:40%~70%RH

Temperature slabilityc0.1℃

Egg turning angle;43士2"

Apparent power. 5.D KW to 27.6 KW

Power supply: 340/220 VAC±10%{Three-phase five -wire system》Highlights

wWith state patented laminar airflow technalogy and narrowed temperaturegradient water cooling designs.even and uniform temperature and airflow fielldswill be achieved，resulting in optimum chick quality and llower powerconsumption.

Effective cooling: air cooling,Dual water cooling systems design makes it highlyadaptive to the enwiroriment.

Spray humidification delivers perfectly distributed humidity and makes bio-security easy-

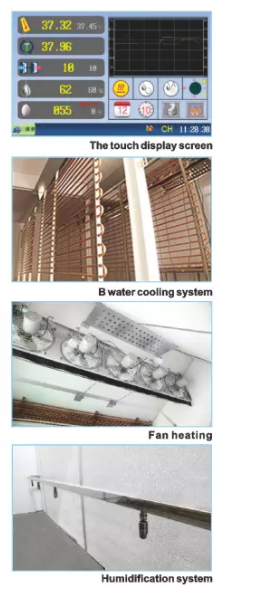

Touch-screen interface; facilitates visual simplicity lin operation,

Space saving: holds more eggs per m2, leading to less building costs.

Practical functions: furnigation & exhaust,auto timing, variant temperature groupsetling and temperature calibration.

With history data recording and analyzing function，you get useful cunvediagrams.

Hlistory dafa can be autput into aUSB flash disk.

Option:Hatchery air handing syslem with energy-recyclling technology (recyclingboth latent heat and sensibla heatp

Option. embryonic online weightlessness controil system, carbon dioxide controllsystem and embryonic temparature oontrol system can make hatch so easy.

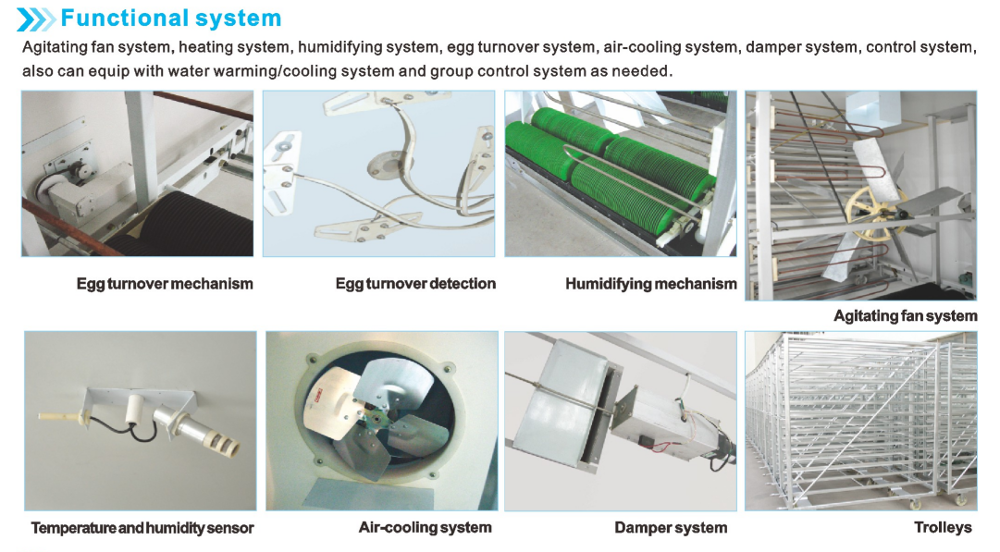

Structure Features:

Single stage large capacity eggs hatchery including cabinet, fan heating system, Grade-A water cooling system, Grade-B water cooling system,eggs turning system, humidification system,ventilation system,control system and egg carts.

After the eggs pushed into cabinet, a closed duct formed by cabinet back panel,door,eggs car floor and ceiling, The airflow formed in the sealing duct after the air generated by fans.

Grade-A, Grade-B water cooling system effectively solve the problem of heating generate by a large number of eggs hatching.

The throttle is push-pull working model, with throttle opening angle setting, linkage of airlet and outlet opening which ensure the precise exhausting control.

With Pneumatic eggs turning system, which the cylinder installed in the egg cart to make sure the car positioning and more compact for cabinet space.
