slicer machine QKJ280-II

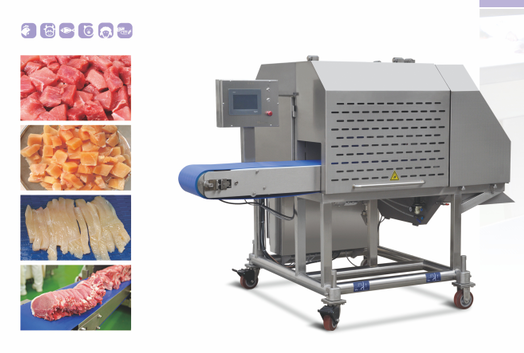

Fresh meat strip and cube cutter machine 2D Dicer slicer QKJ280-II is a two dimensional dicer of whole muscle. it can strip, steak, cube, or dice for beef, chicken, pork, lamb, seafood, cheese, cooked meat and other products temperature less than 0 degree. it can be connected with horizontal slicer to realize size control of 3D.

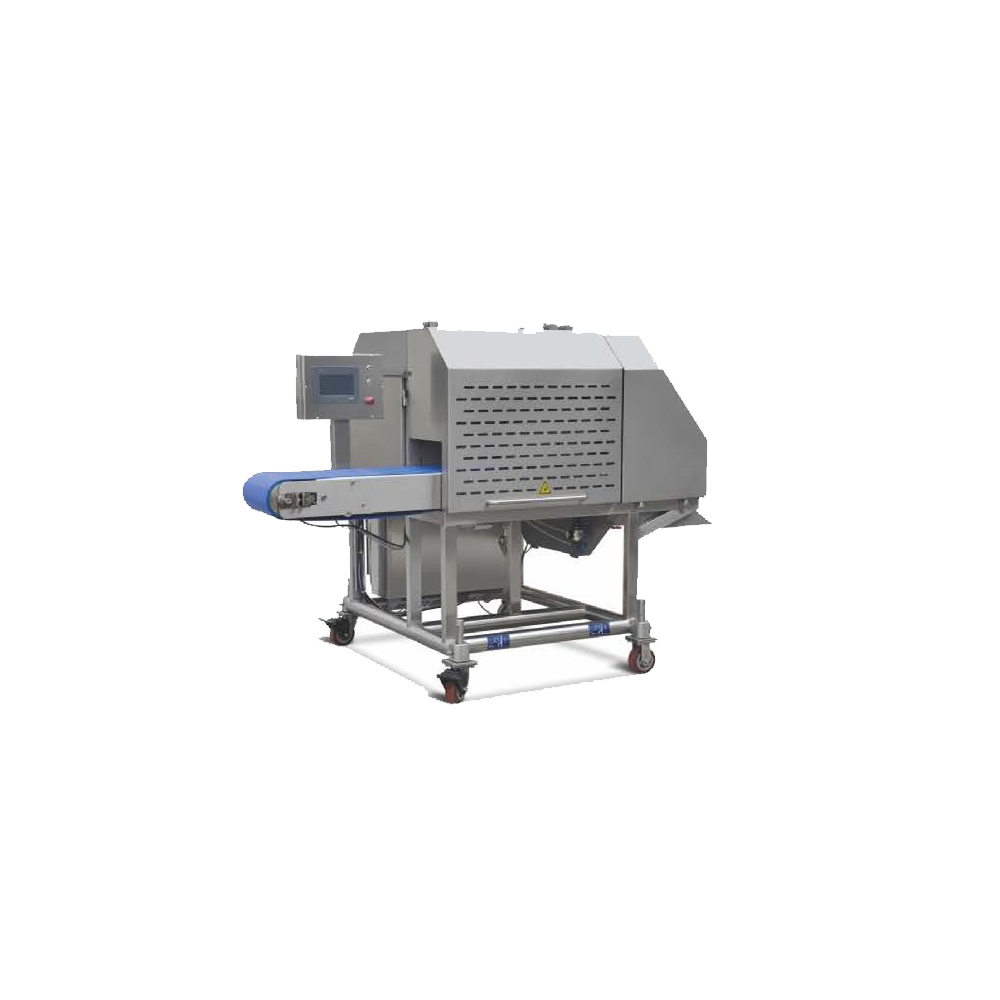

slicer machine QKJ280-II

Features :

1: Product passes through the sprial blade for 1D cut.

2. the product cutting length is adjusted by the touch screen.

3. products passes through the circular blade for a 2d cut.

4. gentle feeding and discharging keeps moisture in the product which minimizes breakage and maximizes dice yields.

5. the initial height of product going through the pressed belt is adjusted by the touch screen.

6. whole belt can be removable, easy to clean.

7: high production capacity , precisely cutting, and no need to use two sets machine to realize cube cutting.

8: tough, fatty products with sinew or gristle and vegetables also can be cut, finished product is clean cut with no connective pieces, no loss of structure and no moisture loss.

9: whole machine stainless steel made.

Technical parameter :

Model

QKJ280-II

Belt width

280 MM

Belt speed

2~10m/min

Weight errorless than 4%

Cutting size

≥3mm sprial blade,  ≥5mm circular blade

product temperature

≥-2

Input/Output height

1000±50mm

Power

3.86kw

Overall dimension

2400x1260x1700mm
