poultry waste rendering equipment
poultry waste rendering equipment

poultry waste rendering equipment

USD 12,000-18,000 / unit
Minimum order quantity:
1 unit
Supply Ability:
1000 unit / Year
Country of Origin:
  • Applicable Industries:Manufacturing Plant
  • Applicable Industries:Food & Beverage Factory
  • Applicable Industries:Farms
  • Applicable Industries:Food Shop
  • Applicable Industries:Construction works
  • Applicable Industries:Food & Beverage Shops
  • Condition:New
  • Warranty:1 Year
  • After-sales Service Provided:Field installation, commissioning and training
  • After-sales Service Provided:Field maintenance and repair service
  • After-sales Service Provided:Video technical support
  • After-sales Service Provided:Online support
  • Type:Other
  • Brand Name:CONNECT
  • Voltage:380V/440V
  • Dimension(L*W*H):customerilized
  • Weight:1000 kg
  • Certification:CE
  • Place of Origin:CN;HEB
Product Description

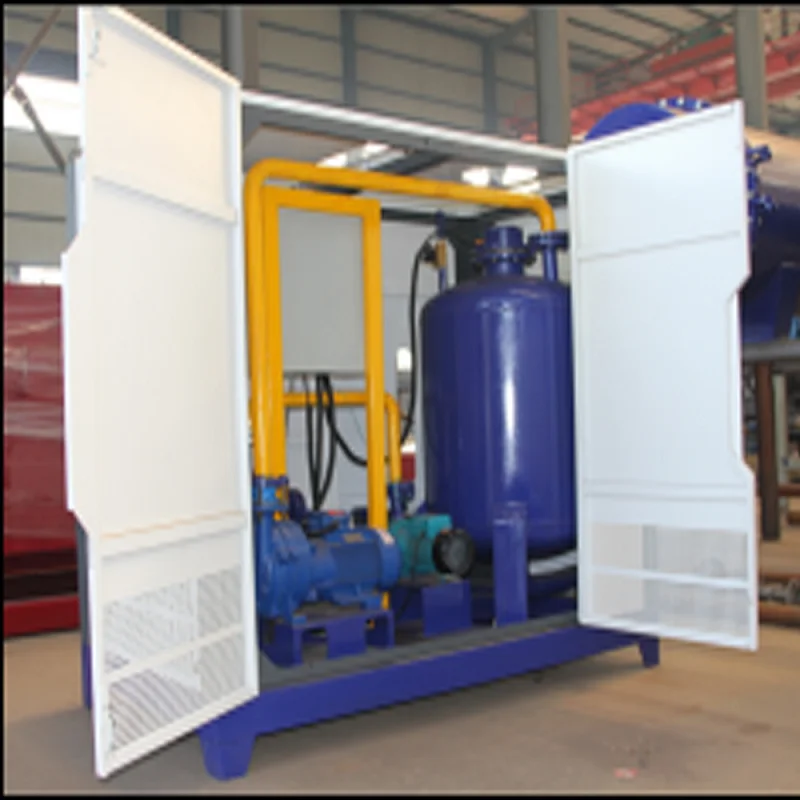

 Vacuum pump station

ZF series vacuum pump station (which also known as vacuum devices, vacuum stations, etc. ) is forming by one or two sets of water circulating vacuum pump,also with vacuum tank as storage devices, it is a complete system. The odor which exhaust from Batch Cooker and Dryer is sucked by the vacuum pump station, as it is a continuous work, by the system work, it greatly improve the life of the pump. The system also can used in other industrial field which providing vacuum source,such as chemical, pharmaceutical industry,canning system of light industry ,and other place as vacuum sources.


How it works:


1. Two pump

First, set the upper ad lower limits of the vacuum system (such as the upper limit is set to -0.08 Mpa, the lower limit is set to -0.06Mpa), after starting the system, one of the pumps start working until the vacuum tank vacuum reaches upper limit -0.08Mpa, pump automatically stops running at this time, the vacuum tank vacuum automatic cut-off by the vacuum check valve,vacuum tank as a result of work demands,a degree of vacuum drops below the lower limit of -0.06Mpa, and then another pump starts automatically, unit the vacuum reaches to -0.08Mpa,so the cycle repeated automatically, the vacuum in vacuum tank is always maintained between the upper and lower limit. When vacuum pump station start work, the water pump in system will pump the chilled water from cooling tower into condenser, and when the vacuum reach to the upper limit, the odor from cooker and dryer will sucked into condensers, the high temperature odor turns into waste water while during the heat exchanging process with chilled water in condensers, then waste water drainage out through the sewage tank in vacuum station.


2. One vacuum pump

First, set the upper and lower limits of the vacuum system, after starting the system, vacuum pumped to limit automatic shutdown, the system automatically vacuum is below the lower limit set. Vacuum pump can also manually start and stop.



The device after first time start, the entire process can be run to achieve automatic control.


Evaporating start from temperature of 80 ℃, save energy



























Production Flow


Company Information

CONNECT GROUP is a manufacturer specializing in poultry processing machines and equipment,supplying high quality poultry slaughtering machines and complete butchering solutions for clients involved in the poultry industry.CONNECT was founded in 1999,and has gathered 30 years of experience in the poultry processing field.All of CONNECT’s products strictly follow the standard of ISO9001:2000 international quality system.Our company has strong information resources,has signed agency agreements with many major suppliers,and also provides professional technical support ans excellent aftersales service.


Our Services

 We give good before service and after service around the machine using life, and all the machines we sold will garanteen by our company, and we have good design, manufacturing, research and development, installation, maintenance,training departments. When clients are asking for service, we will give it as soon as possible to help client to solve all the problems. And nowadays, we establish a new department for turnkey project installation for big project, helping client to finish the project in short time, and get feedback on this project soon, as all this project takes long time on installation by local labors.


Wholesaler & Distributor


If you are dealing on coffee business and have interesting on us. if you want became ours wholesaler or distributor on your place ,we are very willing to share profits together with you. You will get

1/ VIP W/D price available

2/ New products update at first time

3/ 2 years free spare parts available

4/ quickly delivery

5/ free technical engineer door to door service.


1. how many types of chickens can it be processed?

 A: It can process broiler ,layers, quails,goose,ducks and pigeon.


2.what is the capacity of this line?

A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.


3.can it be process different weight of birds?

A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.


4.Can you design and install the project for us?

A:We have good design and installation department for help  you on this project.


5.What is the differences from Manual EV line to Automatic EV line?

A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almostly same birds.


6.What is the differences from screw chiller to air chiller?

A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller  and ice flaker for cooling the normal water into cold water, its ok for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.


7.How is Connect Group?

A: Connect Group is a company in China, which have his own trademark, Our group totally have seven companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.


8: Why we select Connect Group?

A:Connect Group is with the best service for the clients.
