USD 10,000-50,000 / set
Minimum order quantity:
1 set
Supply Ability:
100 set / Year
Country of Origin:
  • Applicable Industries:Manufacturing Plant
  • Applicable Industries:Food & Beverage Factory
  • Applicable Industries:Farms
  • Applicable Industries:Construction works
  • Applicable Industries:Food & Beverage Shops
  • Condition:New
  • Application:Poultry
  • Place of Origin:CN;JIA
  • After-sales Service Provided:Field installation, commissioning and training
  • After-sales Service Provided:Field maintenance and repair service
  • After-sales Service Provided:Video technical support
  • After-sales Service Provided:Online support
  • Warranty:1 Year
  • Brand Name:CONNECT
  • Voltage:220-440v
  • Dimension(L*W*H):1200x 800x1400mm
  • Weight:800kg
  • Certification:CE
Product Description

 1. Function

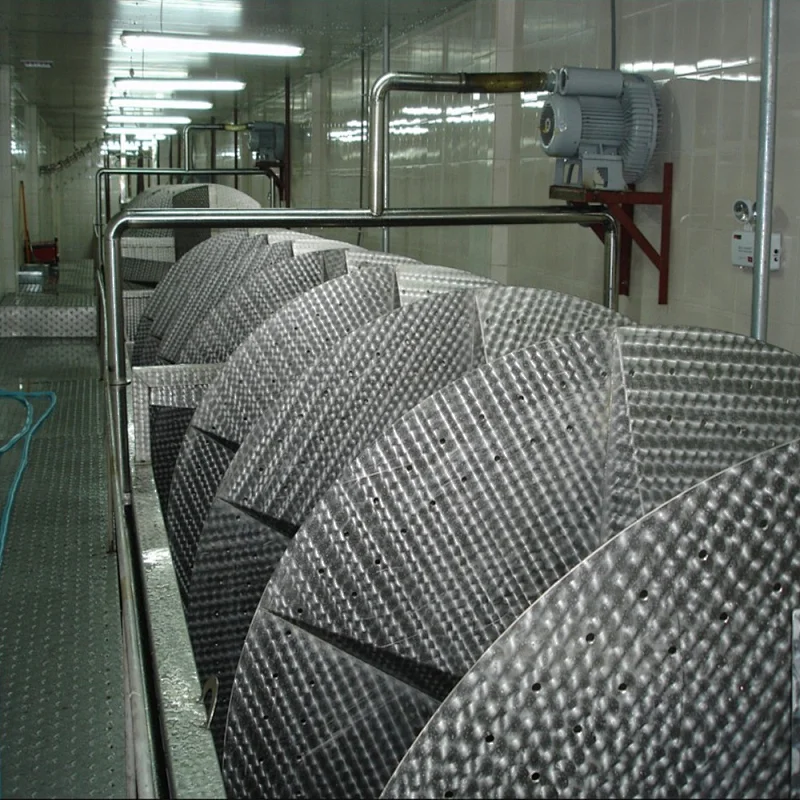

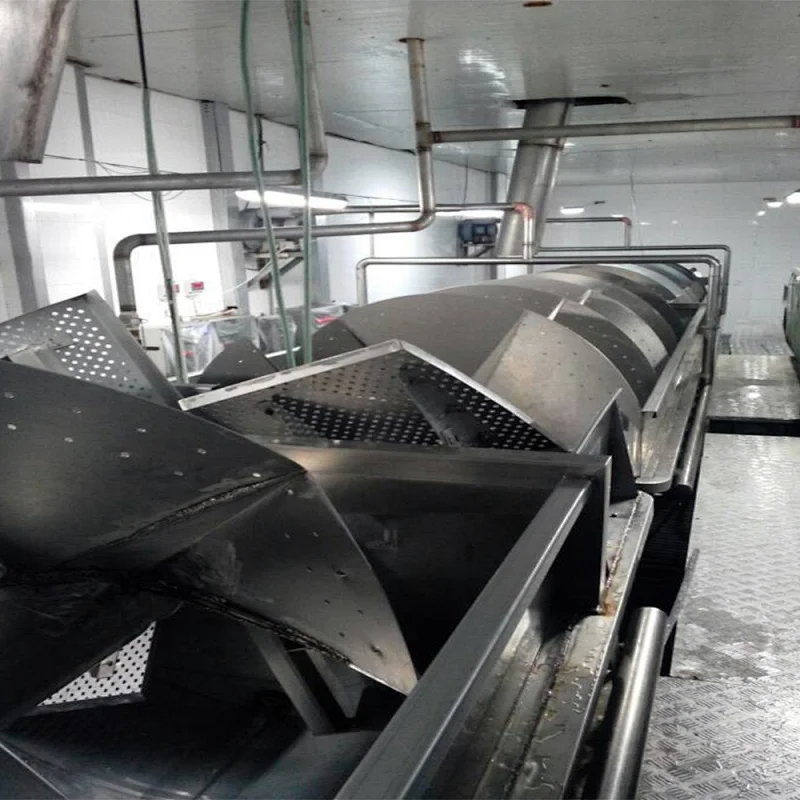

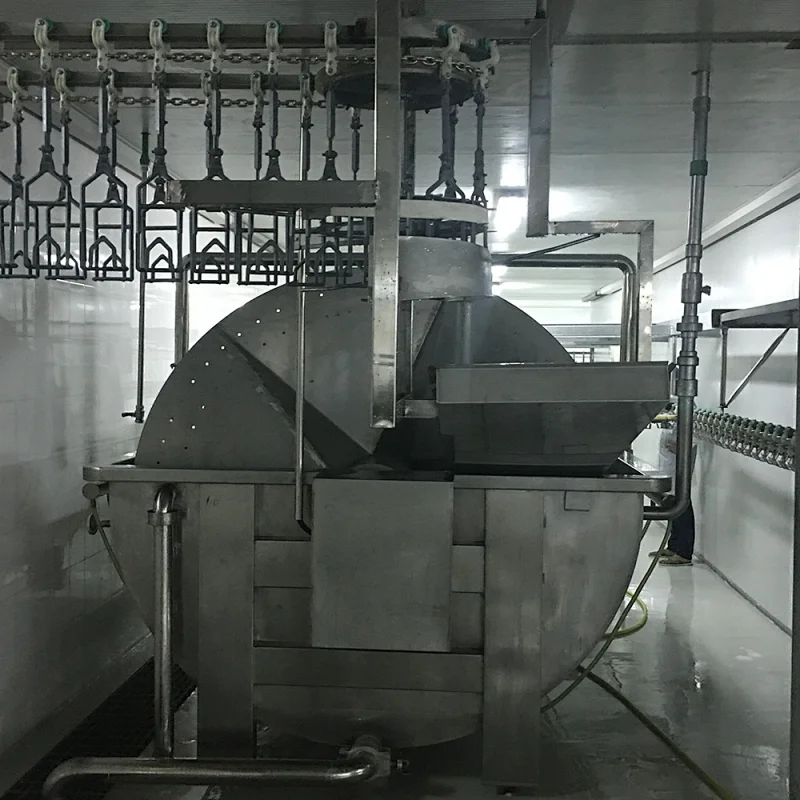

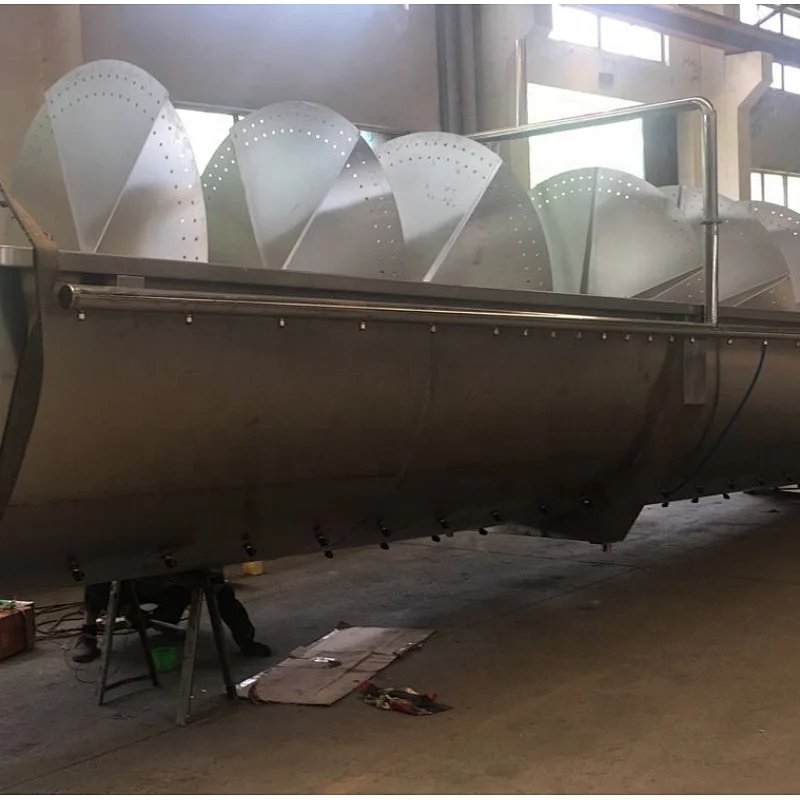

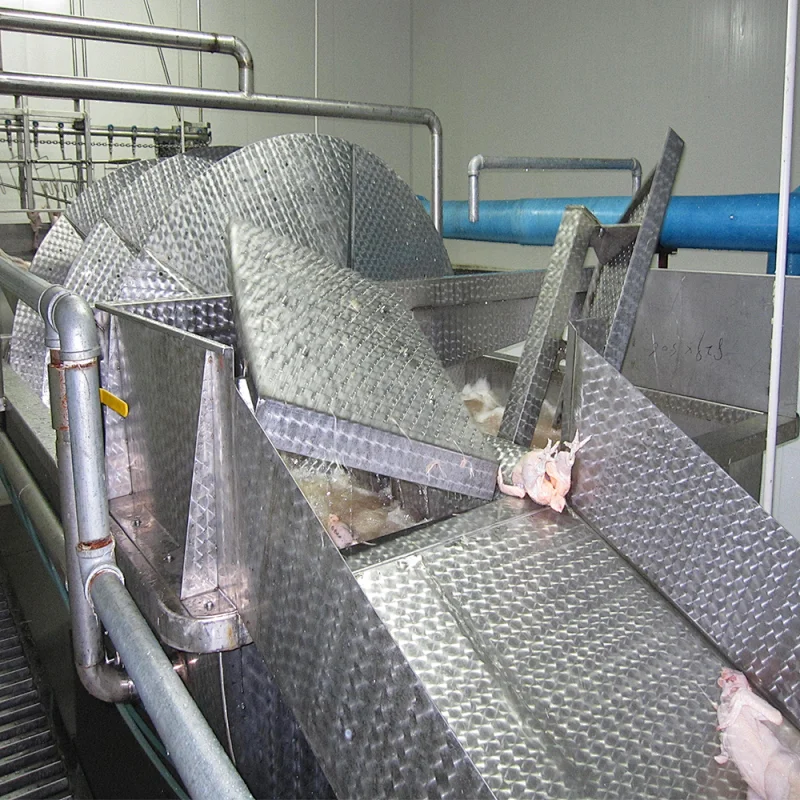

Screw Chilling is the equipment in Poultry Processing Line for poultry carcass or byproducts cooling down the temperature. During operation, the chiller need to add 0-4 degrees cold water or ice, after 45-60 minutes of pre-cooling time, so that the center temperature of products falls down from 38 degrees to below 8 degrees, effectively inhibit deterioration and carcass bacteria. The device has the following special features and benefits:

2. Small Installation area

3. Energy dissipation area is small, saving energy.

4. Pre-cooling is good effect, the birds body are move forward with the working of spiral blade, at meanwhile, at the bottom of the cell body through the fan continuously bubbled up, so that the body continues to roll poultry, which will intrathoracic bloody discharge. But also to a large extent due to ease of avian body trauma caused by subcutaneous congestion.

3. All stainless steel, beautiful, no health dead clean corners for easy cleaning.

5.Rotational speed of the spindle motor can be adjusted through the inverter, the effective control of avian body pre-cooling time.

2. Structure and Working Principle

Spiral cooling machine sub-single and dual drive in two drives, the overall cleaning section is divided into sections and pre-cooling. By the half-cylindrical body, the spiral blade, the spindle, from poultry bucket, the driving part of the device and other components.Always follow the principles of the work process poultry body and reverse the flow of water, which, after intake, overflow port in front, the greatest degree of avian body clean.


The main component of the cooling machine: the cell body pre-cooling machine screw rotating blades, drive shaft, from the birds fighting, the spindle drive gear, from birds bucket drive gear, fans, etc.


4.Installation and commissioning of the equipment and maintenance

1, in accordance with the requirements of the process in place, adjust the body's level of horizontal error of 0.5mm / M

2, due to shipping and handling reasons, before the formal operation should be no-load operation, check the direction of rotation of the spiral blade also check leaves from the cell body and the presence of avian bucket touch scratch phenomenon, and adjust.

3, turn on the water to the pool, to the set level (generally associated with the spindle centerline relative level is appropriate); check the water level at both ends of the height of the pre-cooling are the same; the cell body check for leakage.

4 reducer injection before use 40 # to 50 # machine oil, regular inspection and refueling (usually 3 months). Not inject dirty or corrosive lubricants contain.

5, fan inlet must be kept clear of obstructions can not have any fever Check motor.

6, equipment and operations supervised payable to prohibit free to change the parameters of the inverter.

7, cooling machine during use is strictly prohibited in the following work

Cooling machine water level is too low, is still in use

Cooling machine carcass has exceeded the number of allowed number of design

Pool filled carcass body spindle drive and then start fighting drive from poultry

When birds from fighting stopped, the spindle gear continues to work

Stop the fan for a long time to work

8, the temperature regularly check the motor at work, when the motor temperature is too high, please stop working check (hand on

Check the motor).

9, regular cleaning of cooling machine duct.

10, is prohibited in equipment operation, the operator enters the pre-cooling machine.

11, when the work is prohibited in the cooling machine pool mouth and put your hands on both sides of the end plate opening pre-cooling machine.

12, the sides need large capacity cooling machine is equipped with operation and maintenance work platforms.


Screw chiller is widely used in Poultry processing line, water chilling unit. According to the final products requests to decide use water screw chilling, or can be combined water screw chilling with Air Chilling



Production Flow




Related Products















Company Information

CONNECT GROUP is a manufacturer specializing in poultry processing machines and equipment,supplying high quality poultry slaughtering machines and complete butchering solutions for clients involved in the poultry industry.CONNECT was founded in 1999,and has gathered 30 years of experience in the poultry processing field.All of CONNECT’s products strictly follow the standard of ISO9001:2000 international quality system.Our company has strong information resources,has signed agency agreements with many major suppliers,and also provides professional technical support ans excellent aftersales service.


Our Services

 We give good before service and after service around the machine using life, and all the machines we sold will garanteen by our company, and we have good design, manufacturing, research and development, installation, maintenance,training departments. When clients are asking for service, we will give it as soon as possible to help client to solve all the problems. And nowadays, we establish a new department for turnkey project installation for big project, helping client to finish the project in short time, and get feedback on this project soon, as all this project takes long time on installation by local labors.


Wholesaler & Distributor


If you are dealing on coffee business and have interesting on us. if you want became ours wholesaler or distributor on your place ,we are very willing to share profits together with you. You will get

1/ VIP W/D price available

2/ New products update at first time

3/ 2 years free spare parts available

4/ quickly delivery

5/ free technical engineer door to door service.


1. how many types of chickens can it be processed?

 A: It can process broiler ,layers, quails,goose,ducks and pigeon.


2.what is the capacity of this line?

A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.


3.can it be process different weight of birds?

A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.


4.Can you design and install the project for us?

A:We have good design and installation department for help  you on this project.


5.What is the differences from Manual EV line to Automatic EV line?

A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almostly same birds.


6.What is the differences from screw chiller to air chiller?

A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller  and ice flaker for cooling the normal water into cold water, its ok for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.


7.How is Connect Group?

A: Connect Group is a company in China, which have his own trademark, Our group totally have seven companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.


8: Why we select Connect Group?

A:Connect Group is with the best service for the clients.
