Model NO.
CN-feeding
Price:
USD 900.00-900.00 / set
Delivery:
FOB
Supply Ability:
1000 set / Month
Country of Origin:
Shanghai
Quantity:
  • Place of Origin:CN;SHN
  • Brand Name:CONNECT
  • Model Number:CN-feeding

Main feeding line system

consists of a driving device, a silo, a conveying pipe, an auger and a feed sensor. The main feeding line system is mainly used to convey the feed in the silo into the hopper of the feeding line and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Performance parameters of main feeding line system
1, High-quality special driving reduction motor
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2, Feeding system
Diameter of conveying pipe: φ75*3.6mm, material: PVC
Helical spring auger from South Africa, Feeding ability: 1,400kg/h, maximum conveying length: 60m
Radius of bending pipe: R1500 (inclination angle: 30 degrees)
3, Material level sensor from Israel: time delay range 0 to 2 hours

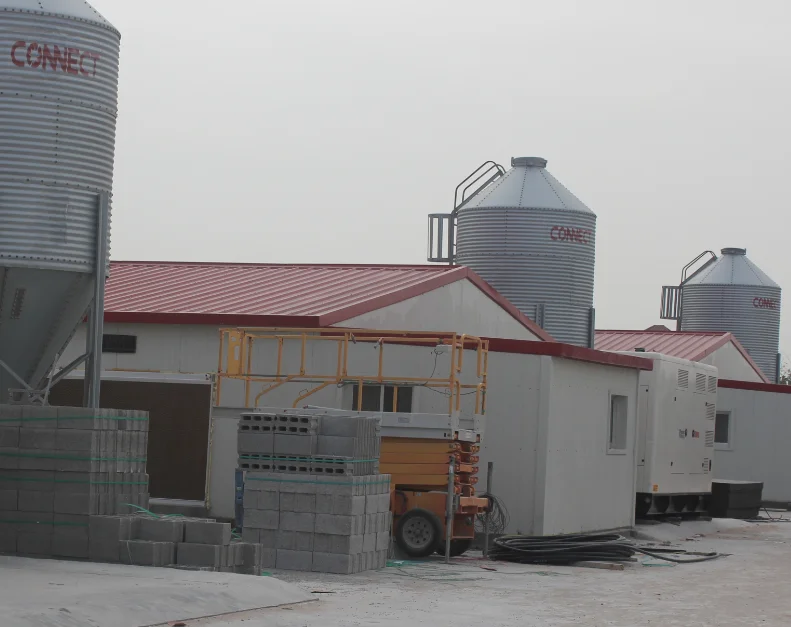

Silo capacity:




Model

Volume

Height (no foundation)

Diameter

MRS-4.5(1802)

6.2m3

4.9m

1.833m

MRS-8(2701)

11.2 m3

4.5m

2.75m

MRS-11.5(2702)

16.4m3

5.68m

2.75m

MRS-15(2703)

21.6m3

6.8m

2.75m

MRS-22.5(3602)

32m3

6.9m

3.667m

MRS-30(3603)

42m3

7.9m

3.667m

Material description: silo roof plate and silo wall plate layer-galvanized sheets with the thickness of 1.2mm; second layer of silo wall plate-galvanized sheet with the thickness of 1.5mm;
Conical bottom plate-galvanized sheet with the thickness of 1.5mm; silo column- hot dip galvanizing on the surface No. 10 channel steel; support-φ3.6mm, 8 supports/silo
