Model NO.:
Connect-feet
Price:
USD 5000.00-5000.00 / set
Delivery:
FOB
Supply Ability:
1000 set / Month
Country of Origin:
Shanghai
  • Place of Origin:CN;JIA
  • Brand Name:CONNECT
  • Model Number:Connect-feet

Auto feet processing line

Including feet conveyor, feet scalder, feet de-skinning, feet chiller.

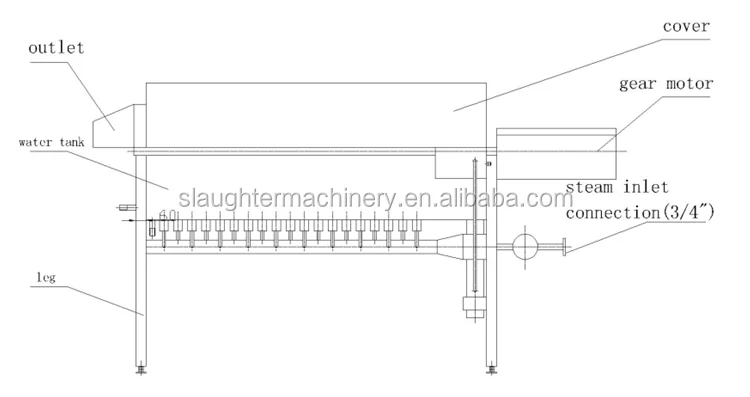

1.  Feet Scalder

1,Function

   It is used for scalding the chicken feet.

2,Structure and working principle

   It is made up of the stainless steel frame,water pool, cover,driven device,spiral shaft,steam heating system,auto temperature controlling system and water supply system.

   The scalder 's driven device drive the spiral shaft,after the feet is in the hot water for some time,the feet will be taken out automatically by the spiral shaft.




3,Technical data

  A),model of the gear motor

  B),Capacity:1000kg/h

  C),Power:380V+10%,50Hz

  D),Vortex blower maximum pressure:18Kpa

  E), Vortex blower maximum flow:130m3/h

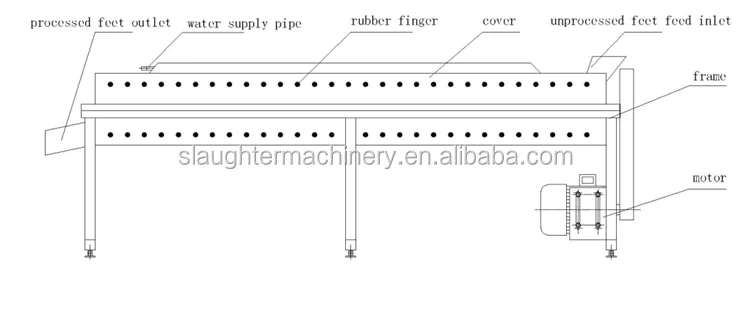

2.  Feet De-Skinning

1,Function

   It is used for removing the skin of the scalded chicken feet.

2,Structure and working principle

   It is made up of the stainless steel frame,cover,motor,rubber belt,roller with rubber finger,feed hopper,outlet and water supply device.

   The feet skin is removed by the friction of the rubber fingers which is fixed into the roller and cover when the motor is being started.




3,Main technical data

  A),model of the motor:

  B),model of the bearing:

  C),Power:380V+10%,50Hz

  D),Capacity:1000kg/h

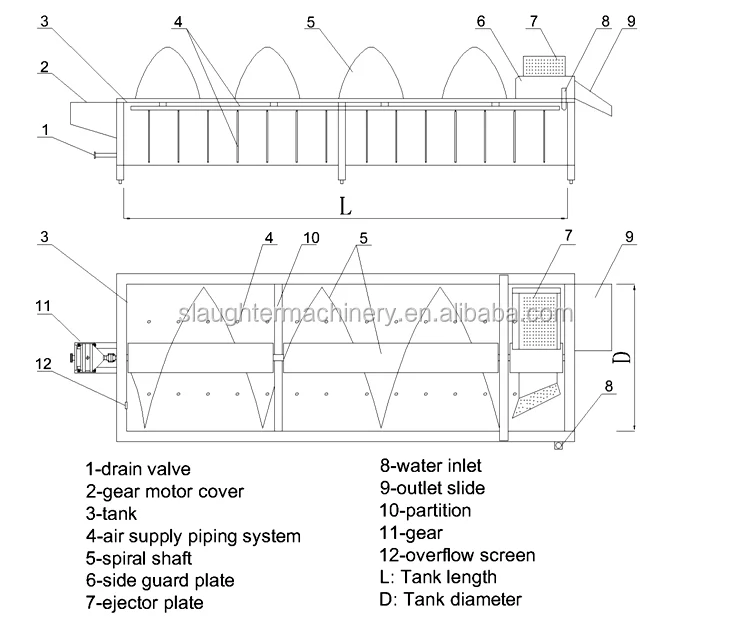

3.  Spiral Chiller for chicken feet

  Function and Application:

   The spiral chiller is mainly used for washing and chilling of all size of the chicken feet.






3,Main technical data

  A),model of the gear motor

  B),speed of the belt:about 8.9m/min.

  C),Power:380V+10%,50Hz



Process flow



Our delivery

QQ20181228142122



Our Connect

QQ20180911092829





 Because of processing line equipment, the fina price is against negotiation
