Model NO.
CC-B
Price:
USD 90-120 / sets
Delivery:
FOB
Minimum order quantity:
10 sets
Supply Ability:
1000 sets / Month
Country of Origin:
Qingdao
Quantity:
  • Use:Chicken
  • Place of Origin:CN;SHN
  • Applicable Industries:Farms
  • Applicable Industries:Manufacturing Plant
  • Applicable Industries:Poultry incubators and raising feeding machinery
  • Type:Cage feeding
  • Material:Hot Galvanized
  • Brand Name:CONNECT
  • Model Number:CC-B





Broiler Cage Feed System.png

Production of Specification



The Complete Broiler cage feed system including

1. Feeding Silo

2. Cage and Frame

3. Feeding system

4. Nipple drinking line system

5. Manure cleanning system

6. Ventilation & cooling Pad system

7. Lighting & Fogging System

8. Environment controller system



Cage mesh adopts Belgium Bekaert Galvanized aluminum wire, the advantage of the steel wire is high intensity, good elasticity. It is hard to rust, with good surface smooth, it is good for chicken feet.



Our cages are fully processed by CNC machine, we can design the individual cage as per the special requirement of clients






Each cage equipped one feed line with 2pcs drinking line, 4-8 drinking nipples. The reasonable configuration ensures broiler to eat sufficient feeds and water, the height of feeding line can be freely adjusted according to the age of birds.

It is very important to keep the height of feeding line and drinking line, we special designed the adjustable device in middle of each row to ensure feeding requirement.



ModelW (mm)



Space of Cage

(mm2)

Distance of two column(mm)length of unit(mm)Quantity of cell cage (pcs)
3kgs2.5kgs2kgs1.5kgs
9LRC3126/416814201420*15001500150035425370
9LRC3144/419216201620*15001500150040486081
9LRC3162/421618201820*1500Intergration30090108136182




The height of feeding and drinking lines can be adjusted according to the size of chicken.

The design and material of bottom wire mesh is very important for broiler quality, which is strong, flexible, hygiene reduce the hematoncus coccidiosis of broiler breast,coccidiosis, and death. Our bottom cage mesh with three galvanized pipe to raise the hardness. The wire mesh with the reasonable square whole to make sure the manure drop off to belt.





Equipped manure belt, the manure be sent out of the chicken house by belt and conveyor auger, to ensure chicken house clean.

Two Tpyes of  feeding Model


1. Auger.

Feed auger conveying system is that the feed is transport with auger to each feed hopper of each line of cage, and then transport to each feed pan in each cage, there is feed sensor to keep feeding averagely.

The height of feeding pan should adjusted according to the size of chicken.



2. Trolley

The trolley feeding is also first with the auger transport the feed to feed hopper , then the feeds are uniformly distributed into the trough of each tier by a moving trolley, meanwhile the quantity of feeds can be adjustable.

cage feeding.png

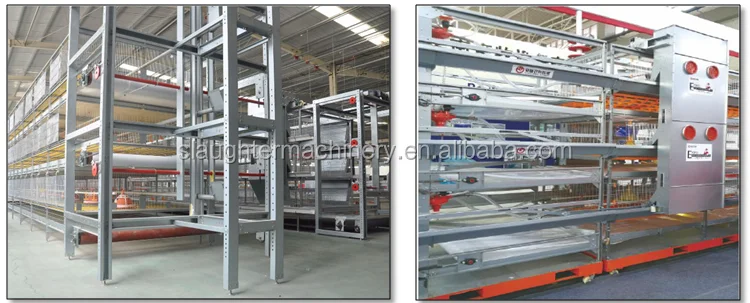

 Pics of Site

cage feeding 1.png
